DC Motor Speed Control by Bluetooth Android

DC Motor Speed Control by Android Application



The project is designed to control the speed of a DC motor using an 8051 series microcontroller with android application device. The speed of DC motor is directly proportional to the voltage applied across its terminals. Hence, if voltage across motor terminal is varied, then speed can also be varied.
This project uses the above principle to control the speed of the motor by varying the duty cycle of the pulse applied to it (popularly known as PWM control). Remote operation is achieved by any smart-phone/Tablet etc., with Android OS, upon a GUI (Graphical User Interface) based touch screen operation .The project uses Bluetooth device, interfaced to the microcontroller, which are used to control the speed of motor. PWM (Pulse Width Modulation) is generated at the output by the microcontroller as per the program. The program can be written in Assembly language or in Embedded C. The average voltage given or the average current flowing through the motor will change depending on the duty cycle (ON and OFF time of the pulses), so the speed of the motor will change. A motor driver IC is interfaced to the microcontroller for receiving PWM signals and delivering desired output for speed control of a small DC motor.
Further the project can be enhanced by using power electronic devices such as IGBTs to achieve speed control higher capacity industrial motors.

DC Motor Speed Control  by Bluetooth Android

PCB LAYOUT:
DC Motor Speed Control  by Bluetooth Android pcb

DC Motor Speed Control  by Bluetooth Android

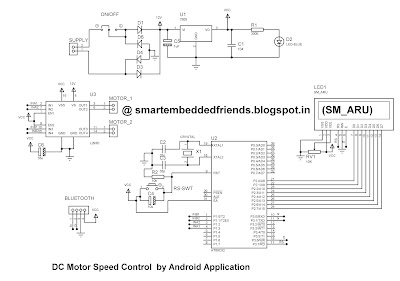

DC Motor Speed Control  by Bluetooth Android Circuit
