Industry and Home Safety System with SMS Notification Projects
Industry and Home Safety System with SMS Notification Projects
In
today’s world home and industry security is major issue and needs to prevent
it’s from the causes due the fire and gas leakage. The gas leakage and fire out
breaks both are spread widely and causes greater loss of life as well as
property if proper action is not taken on the time.
So
here we introduces Industrial and Home
Safety with SMS Notification which have the gas sensor
and temperature sensor to detect gas leakage or fire accidents and alert the
users by sending a SMS with the help of GSM module which is connected
preprogrammed microcontroller.

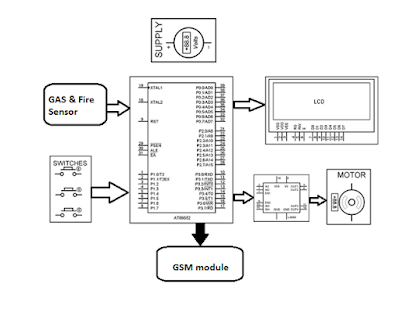

Block
diagram:
In
this system we use a gas sensor along with a fire sensor interfaced to the 8051microcontroller.
When the LPG concentration in the air exceeds the certain level, the Gas sensor
detects the leakage or any fire accident occurred, then the fire sensor will
send an alert to the microcontroller.
This
information is immediately send to the consumer by sending SMS(Short Messaging Service) message to
specified mobile phone through GSM module and display the message on the LCD
display simultaneously to take the required action.
- 8051 Microcontroller
- Fire Sensor
- Gas Sensor
- LCD Display
- Motor
- Power supply
- GSM module
Software
Specifications:
· MC Programming Language: Embedded C
·
Keil version IDE
·
Proteus For Circuit &PCB Design
Industry Temperature Sensing With SMS Notification
Industry Temperature Sensing With SMS Notification 8051 Based Microcontroller
Many
times When temperature limits are exceeded, electronic components and circuits
may be damaged by exposure to high temperatures and Some processes work well
only within a narrow range of temperatures; So proper care must be taken is
important to monitor and protect the system.
Here
we present the Industry Temperature sensing system with GSM notifications and
it monitor temperature using DS18b20 temperature sensor in these we set
temperature limit in minimum and maximum and if temperature go above or below
than the limit then it send massage to the authorized contact which is
predefine number in database and also it stop the working of system until
temperature will reaches under the limit.
Block
diagram:-
In
the system we use DS18b20 temperature sensor interfaced to the AT89S52
microcontroller. The microcontroller is also in connected to an LCD screen.
When
temperature rises beyond or go below a certain limit DS18b20 temperature sensor
sends a signal to the microcontroller then microcontroller processes the signal
and displays the temperature status on LCD screen and then its send the
temperature status massage to the authorized contact which predefine in
database through GSM.
Hardware
specification:-
· AT89S51microcontroller
· DS18b20
temperature sensor
· LCD
· GSM
modem
· Power
supply
Software
specification:-
- MC Programming Language:
embedded C
- Keil version IDE
- Proteus For Circuit & PCB
Design
Electronic Notice Board Controlled By SMS
Electronic Notice Board Controlled By SMS Using 8051 Microcontroller
We know that notice boards is primary thing in public places
like railway stations, bus stations and airportsHotels, Malls, college, offices
and can be used anywhere, even at home.an a separate person is required to take
care of this notices display as notices need to be change on day to day basis
also it is difficult task required more human efforts.
So to
solve this problem here we are introducingElectronic notice board controlled by
GSM in this system we can display a message or notice with a simple, fast and
reliable wayto some display device like LCD, and this message can be easily set
or changed from anywhere in the world, just by using the SMS facility of
your mobile handset. Whatever notice we want to display, just send the SMS of
that text, it is received and retrieved by the GSM modem at the display unit.
It is then sent to the microcontroller that further displays the notice sent
from the user on to the electronic notice board which is equipped with a LCD
display.
Block diagram:
In this project AT89S52 microcontroller is used for
controlling the whole process, GSM module (to receive the SMS/message sent from mobile phone and LCD to
display the message. the message can be sent through an android application
designed in this project, to the GSM module which has a SIM card inside it.Message is need to be send with some suffix and prefix
like#Circuit Digest*, #We Welcomes You*through
the SMS. Here we have used a prefix in the message string that is ‘#’. This
prefix is used to identify the starting of the message or notice. And ‘*’ is
used as suffix to indicate the end of the message or notice.
When we send SMS from mobile phone to GSM module then GSM
receives that SMS and sends it to microcontroller.
Now microcontroller read this SMS and
extract main notice message from the received string and stores in another
string. And then sends the extracted message to 16x2 LCD by using appropriate
commands.The device can be used anywhere
irrespective of the place of deployment provided mobile network connectivity is
available.
Hardware Requirements:
·
8051
Microcontroller (AT89C51)
·
GSM MODEM
(GSM Module)
·
SIM Card
(for inserting in GSM Modem)
·
A mobile
phone with a SIM Card already inserted
·
16 x 2
LCD Display
·
Power
Supply
Software Requirements:
·
MC programming
language: Embedded C
· Keil version IDE
·
Proteus For Circuit & PCB Design
GPS tracker and alcohol detector with engine locking system using GSM
Alcohol Sense Engine Locking System With Sms Control
In This Alcohol
Sense Engine Locking System Projects Its Sense the Alcohol Contain In Car And Notify
the Use with Warning And Also Send the Sms to the User Predefine Mobile No With
Car Location and Lock the engine To Avoid
Accident And Monitor Continuously Alcohol Sensor In Car If There Is Any Emergency or Some other
People Wont To Drive Or He was Not Drunk Then I can Request To System Means He
have to take Permission To Drive the Car And Person Who Got The SMS He will
Enter Valid Password To Allow To By Pass System Then System Get Override And
Allow User To Drive The Can In Drunk Mode .
When System
Halt That Time All Engine Process get Stop In Our System We Use Relay To Stop the Supply
To Motor as Demo
Hardware Required:-
·
Microcontroller
·
Alcohol
Sensor
·
LCD
Display
·
GSM
Module
·
GPS
Module
·
Power
Supply
·
Relay
·
Motor
Software Required:-
·
Embedded
C Programming language
Click Here to Download Data Of Alcohol Sense Engine Locking System With Sms Control Project
RFID Based Attendance System With Sms Notification
RFID Based Student Attendance System With GSM Notification
Attendance needs
to be taken at various places including colleges, school for students and in
the industries for the login logout time of employees. The mostly attendance
system is manual and it is taken on paper, it consumes lot of time and many
traditional Attendance system uses attendance register to note down the
attendance Also the administrative
person needs to maintain the attendance papers,Problem with existing attendance
system is that sometimes wrong attendance can be entered. Also in colleges one
student can give proxy attendance of another student. Probability of this is
very less but it does happen.
So
here we introduce RFID Based Student Attendance System.in
this every student have RFID card which will be used to swapping on RFID reader
which is placed on entry door or gate of class or company.Attendance
will be taken if the encoded tagged ID scanned matches the tagged ID stored in
the memory. Otherwise, an error message will be displayed on LCD and this
attendance will send through GSM to the authorised contact which is predefined in database.
Block diagram:-
In the system of RFID(radio
frequency identification) Based Student Attendance System with GSM
notifications ability to uniquely identify and take attendance of the students,
in this users having RFID card which is an IC chip that has unique code
contained in it and only
need to place their RFID tag on the EM-18 RFID reader to take attendance, and RFID
redder is interfacing with ARM7
(LPC2148) and then micro controller will check
the RFID tag 12 digits number is match with number predefined in micron roller
memory and then attendance data will display on computer. Hence, it is a very
time efficient system. Attendance will be taken if the RFID card tagged
ID is, matches the tagged ID which is predefined in memory. Otherwise, an error
message will be displayed on LCD..Then buzzer is turned on. And this attendance
will send to the authorised contact which already predefined in database via GSM
module
Hardware Specification:-
- RFID Tag
- EM - 18 RFID Reader
- LCD
- GSM
- Power Supply
- Buzzer
Software Specification :-
- MC programming language : embedded C
- keil studio micro version 5
Click Here To Download Data RFID Based Attendance System With Sms Notification Project
